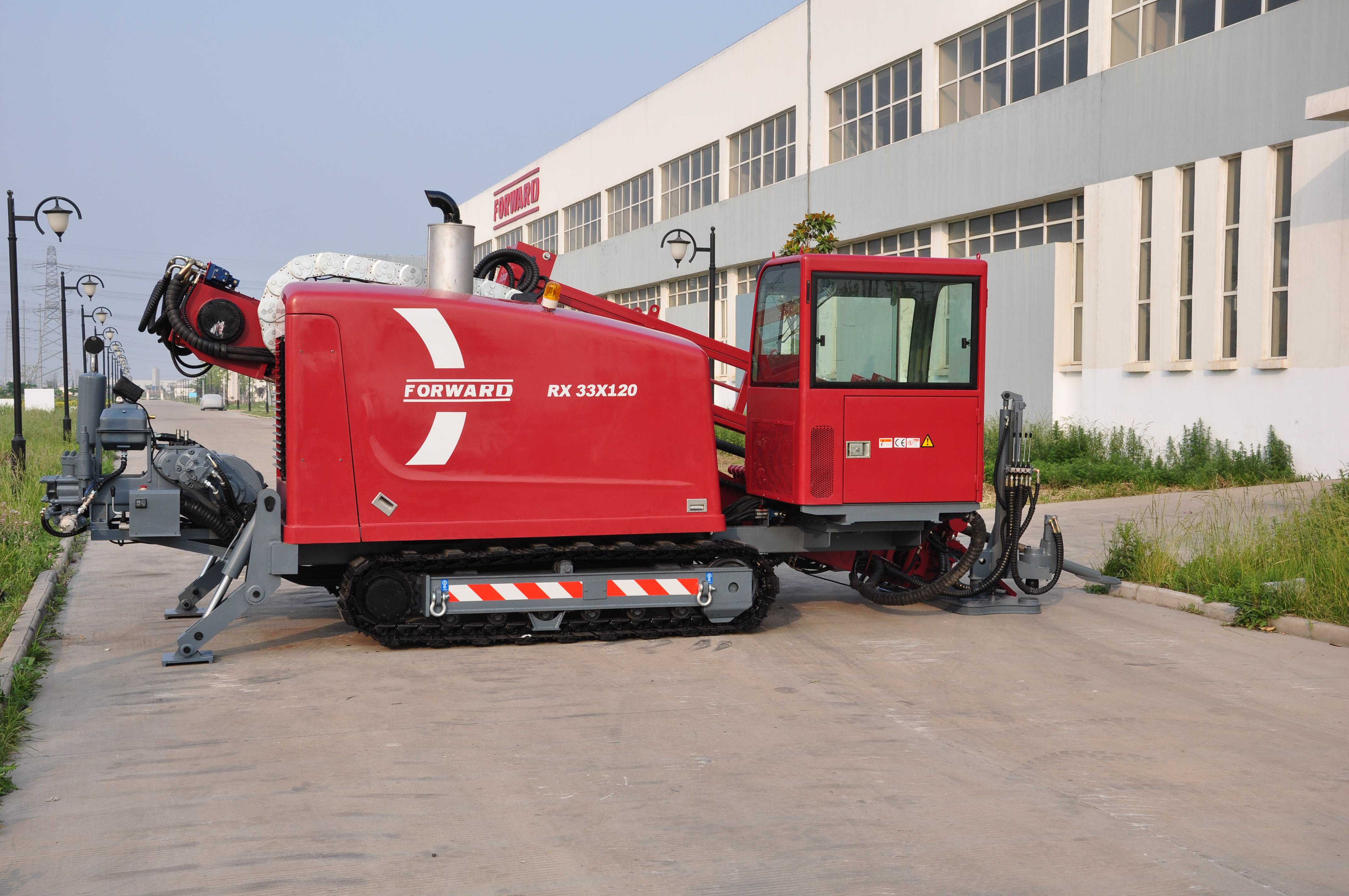

FORWARD RX33×120

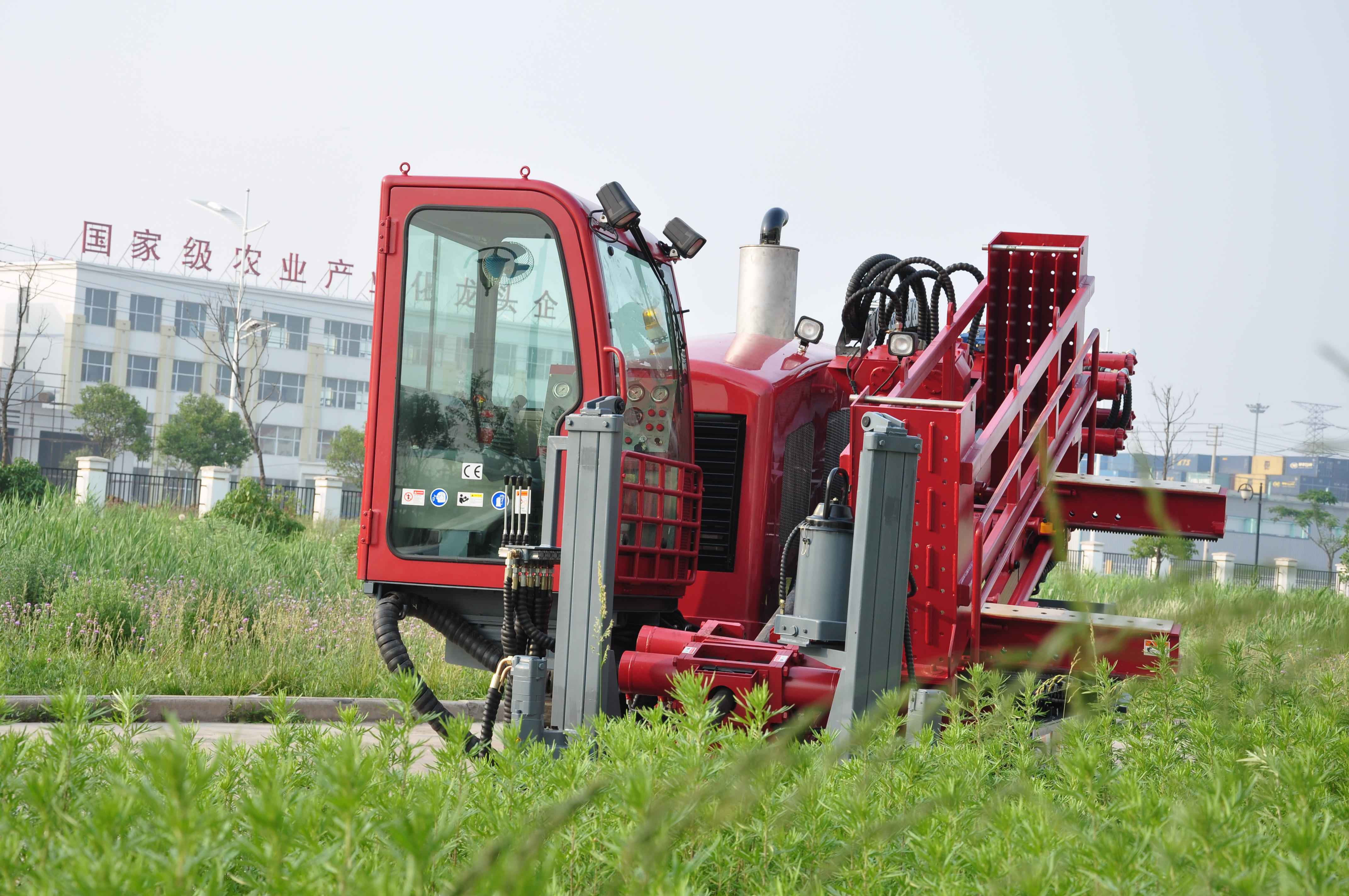

- Klima ve Isitma sistemi ile kontrol kabin
- Çelik parçali kauçuk paletler ile yol yüzeyine zarari engeller
- Çamur pompasi üzerinde küresel vana,tijlerin degismesi sirasinda sondaj sivisi tasarrufu saglar
- Delme çubuklarinin açma kontrollerI
- Tij çubuklarinin disli derzlerinin yaglama mekanizmasi

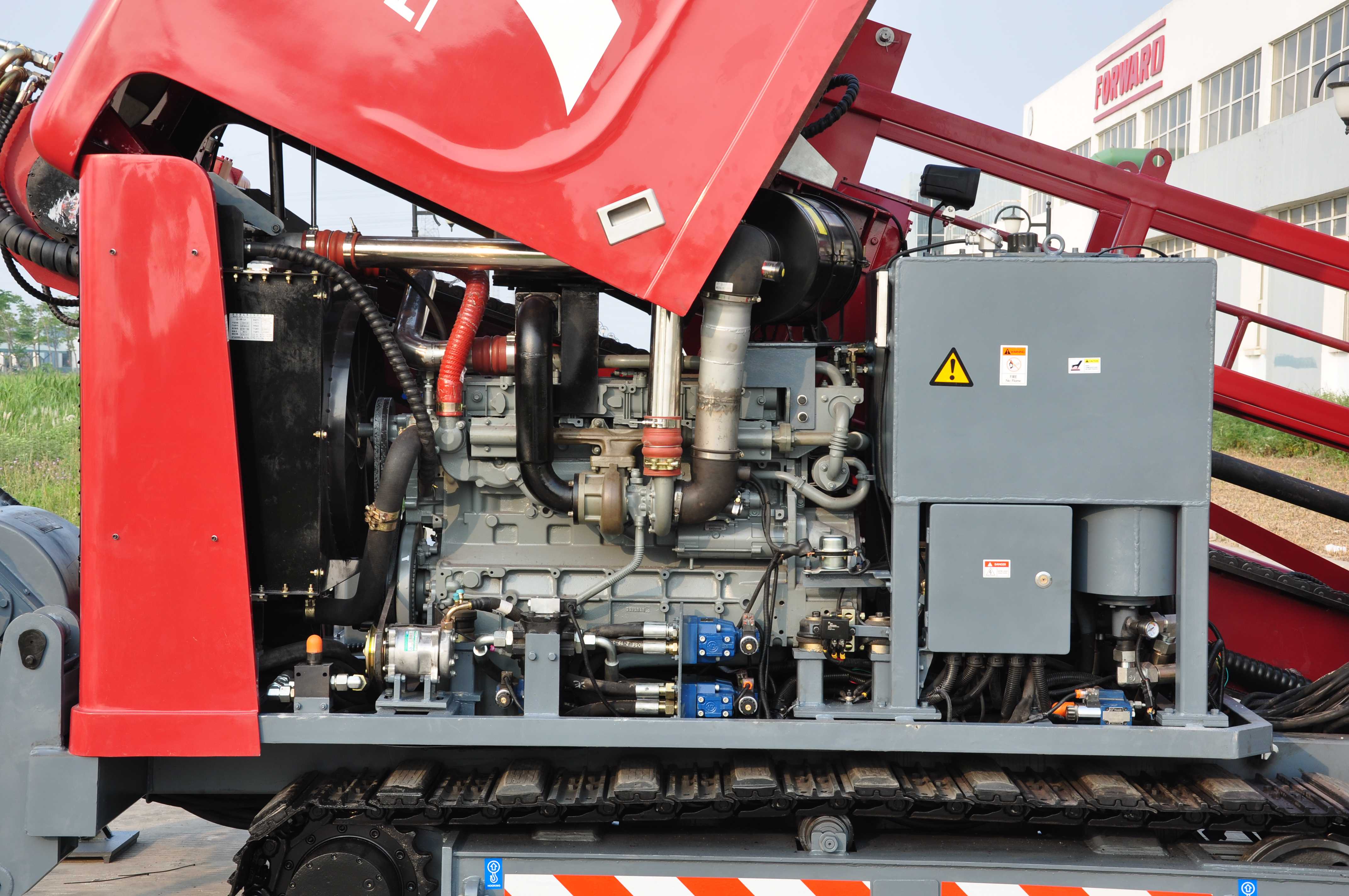

- Acilabilir motor kaputu, rahat bakim saglar
- Yüksek kapasiteli Çamur pompasi

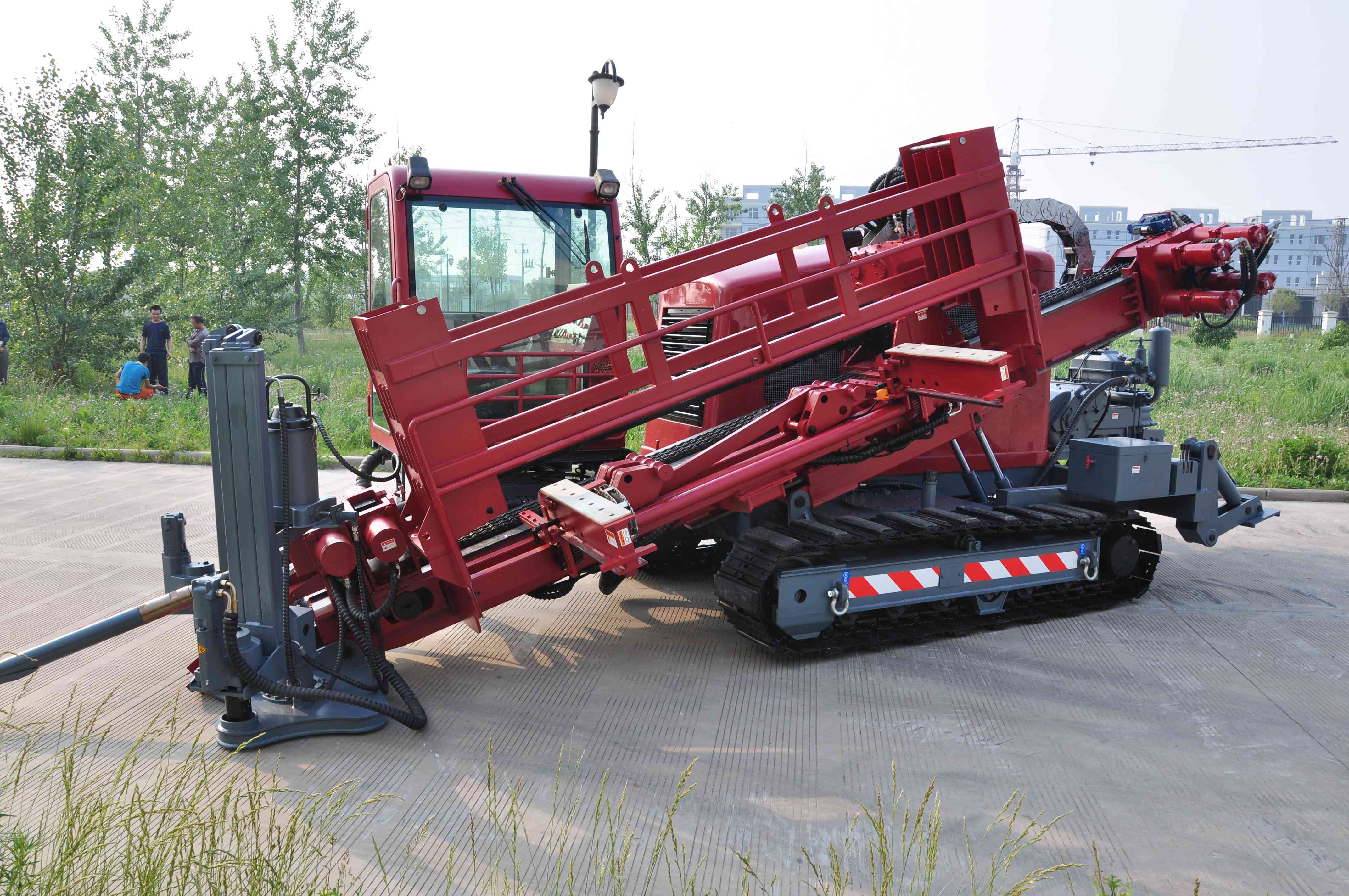

- Delme açisini degistirmek için çerçeve slaytlari (matkap basini kullanarak)
| MAIN TECHNICAL CHARACTERISTICS OF FORWARD RX33x120 PLUS | ||||
| Diesel | Model | Wcichai - DEUTZ | Wcichai - DEUTZ | |
| engine | Power | 176 KW | 239 Up | |
| Rotation | Gears | 2 | 2 | |
| Low speed | Rotation speed | 0-90 rpm | 0-90 rpm | |
| Maximum spindle torque | 15 000Nm | 11063 lb/ft | ||
| High speed | Rotation speed | 0-180 rpm | 0-180 rpm | |
| Maximum spindle torque | 7000 Nm | 5162,9 Ib/ft | ||
| Thrust and pullback | Move speed | 3 | 3 | |
| Low speed | Thrust force | 330 kN | 330 kN | |
| Pullback force | 330 kN | 330 kN | ||
| Speed | 0-9,5 m/min | 0-31,2 ft/min | ||
| High speed | Thrust force | 165 kN | 165 kN | |
| Pullback force | 165 kN | 165 kN | ||
| Speed | 0-42 m/min | 0-137,8 ft/min | ||
| Drilling angle | 10-18° | 10-18° | ||
| Clamping system | Jaws clamping spindle torque |
10 500 Nm | 7744.3 Ib/ft | |
| Jaws reducing spindle torque |
21 000 Nm | 15488,7 Ib/ft | ||
| Mud pump | Maximum capacity | 450 L/min | 118.9 gpm | |
| Maximum pressure | 10 MPa | 1450 psi | ||
| Motion | Motion speed | 0-3 kin/h | 0-1.9 mph | |
| Maximum elevation angle | 25° | 25° | ||
| Drill rod | Lenght | 3 000 mm | 118.1 in | |
| Rod lock | Ø 89 mm | Ø 3,5 in | ||
| Rod body | Ø 76 mm | Ø 2.99 in | ||
| Max banding | 6% | 6% | ||
| Weight | 58 kg | 127.86 lb | ||
| Loading capacity of drill rods holder | 40 pc | 40 pc | ||
| HDD rig weight (main machine) | 11 000 kg | 24250 lb | ||
| Dimensions (L*W *H) | 6,8x2,2x2.33 m | 21x7,2x7,6 ft | ||
| Rod feeding systems | + | + | ||
| Hydraulic system preheating | + | + | ||
| Fuel tank capacity | 247 L | 65.3 gal | ||
| Hydraulic tank capacity | 311 L | 96.4 gal | ||
