RC-2 Su Sondaj Makinasi

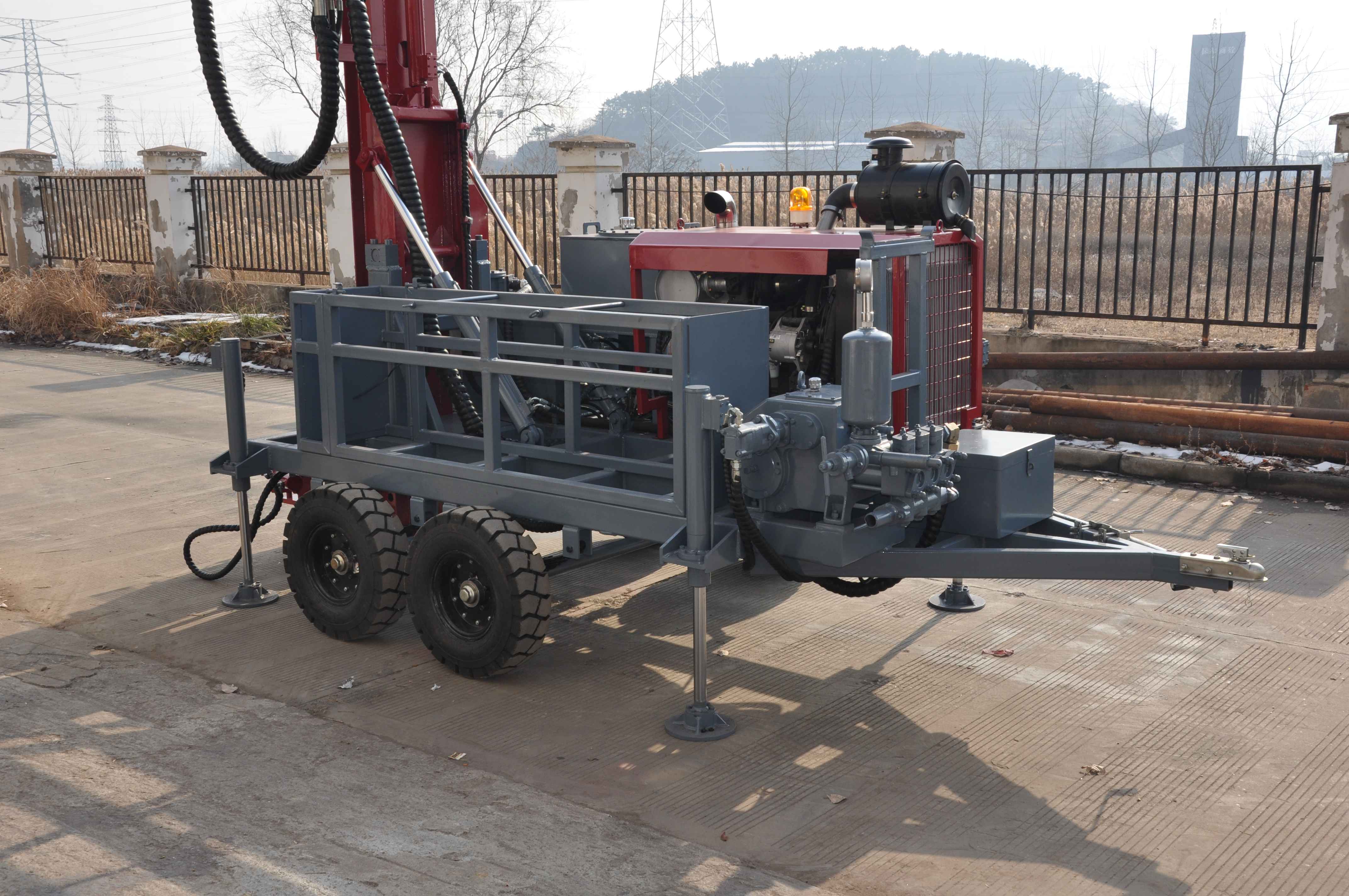

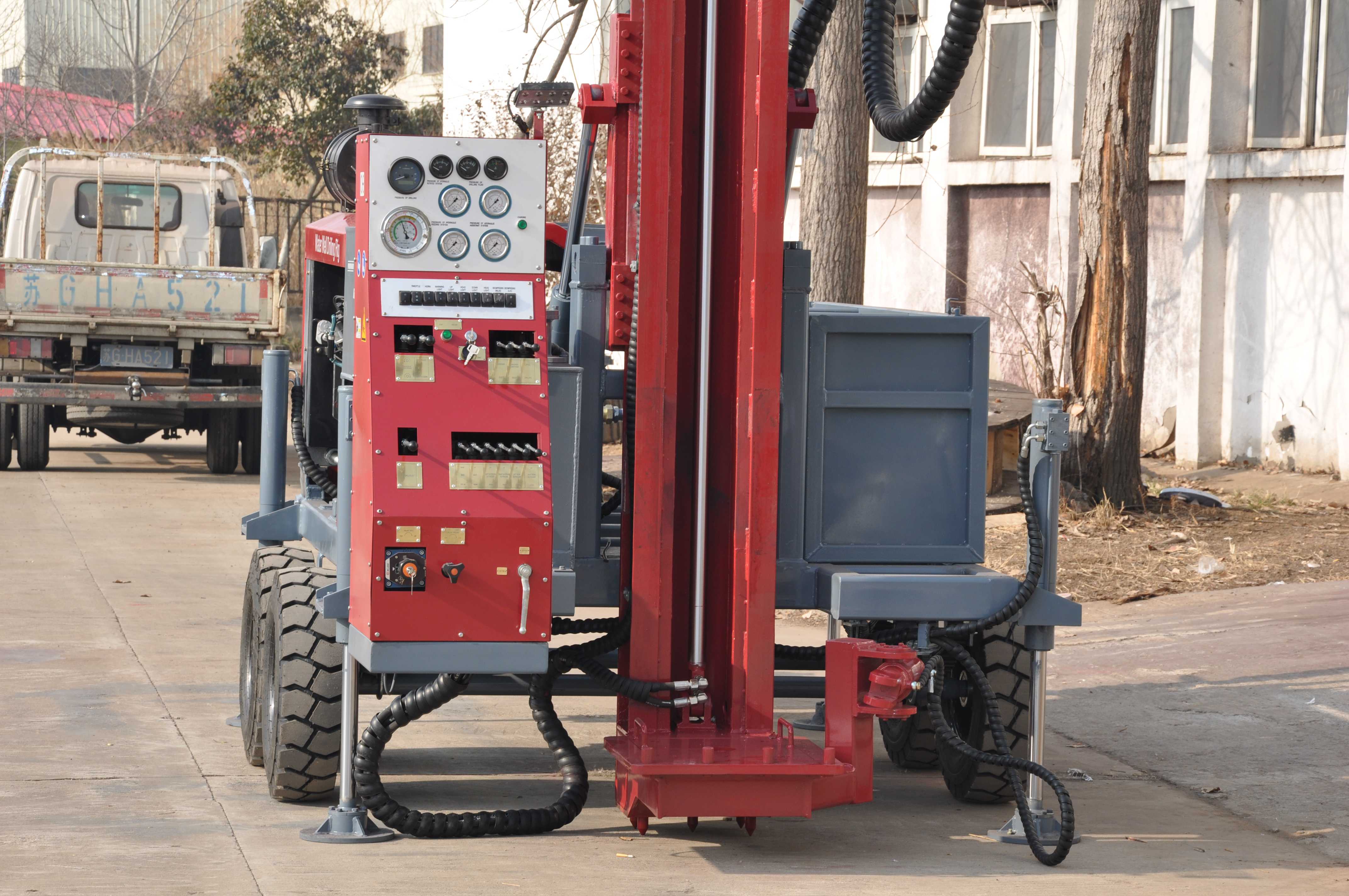

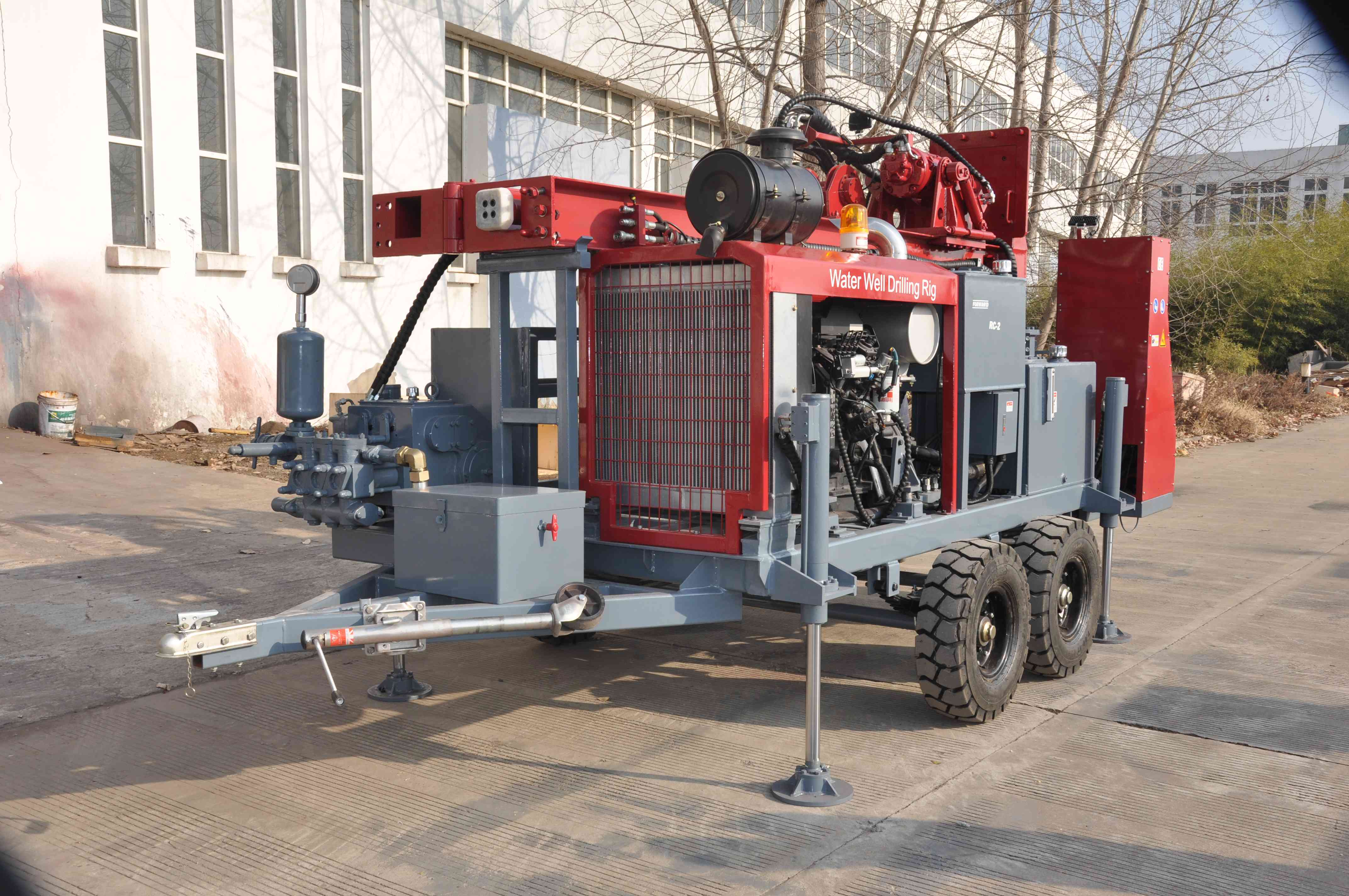

RC-2 Water Well Drilling Rig
The main features
• The maximum diameter of drilling hole 350mm
• The maximum hole depth - 270 m
• 3 types of drilling: mud drilling, air drilling, DTH drilling
• Maximum hoist capacity 62Kn
• Maximum spindle torque 3 500 Nm
• Applicable drill rod range 2——3-1 /2 in
• Full hydraulic drive, smooth and reliable operation for each drilling
• High quality hydraulic system

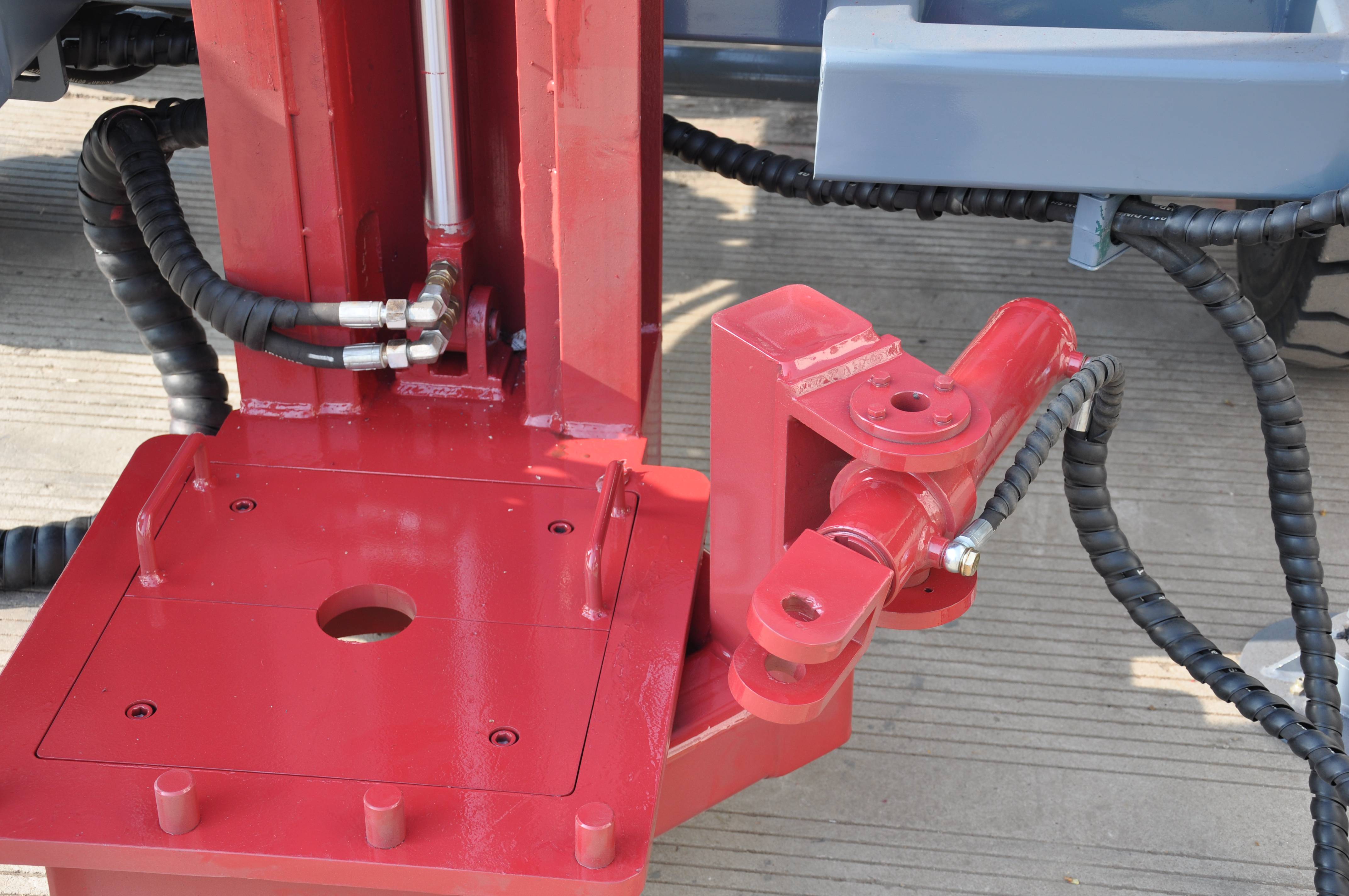

• Equipped with reliable clamping system, which can easily be adjusted for height
• Fast feed and lifting function reduce the time of drilling
• The fold mast ensures the reliability of drilling
• Moving fast
• Easy to set up
Specifications
RC-2 Technical characteristics |
||
| Track | ||
| Moving Speed | 50 km/h | |

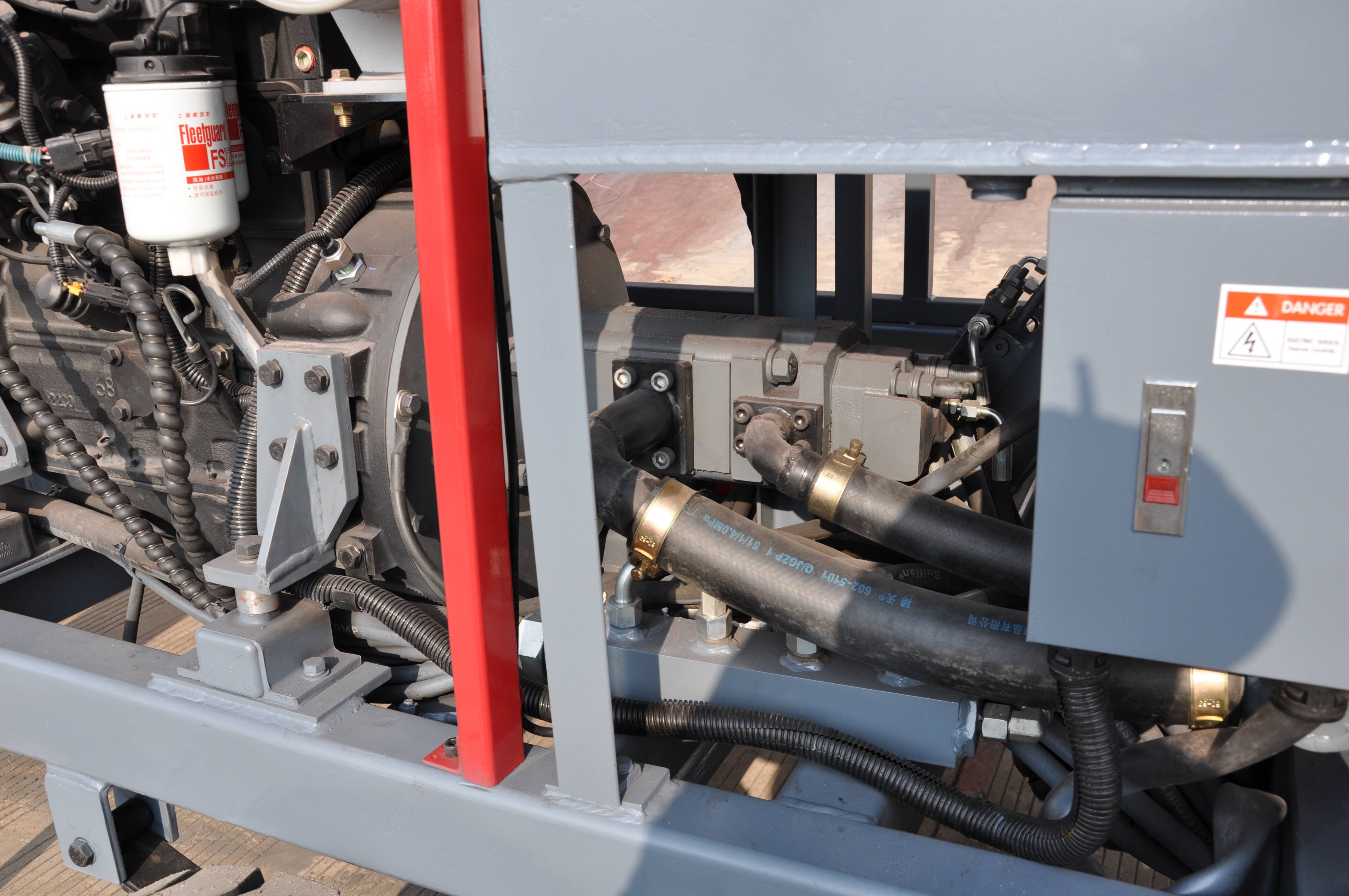

| Diesel engine | ||
| Model | CUMMINS 4BT turbocharged | |
| Power | 60 kW | |
| Type of cooling | Water cooling | |
| Rotation speed | 2200 rpm | |
| Cylinders quantity/ capacity | 4 / 3.9 L | |
| Fuel tank capacity | 135 L | |
| Drilling capability | ||
| 2-7/8 in drill rod | 270 m | |
| 3- 1/2 in drill rod | 210 m | |
| Mast | ||
| Mast Height | 6.67 m | |
| Stroke of Power head travel | 2 600 mm | |
| Stroke of mast slip | 500 mm | |
| Applicable drill rod | Diameter 50-102mm, Length 2m | |
| Push and pull ability of power head | ||
| Maximum hoist capacity (up) | 62 kN | |
| Maximum hoist capacity (down) | 23 kN | |
| Maximum hoisting speed | 33 m/min | |

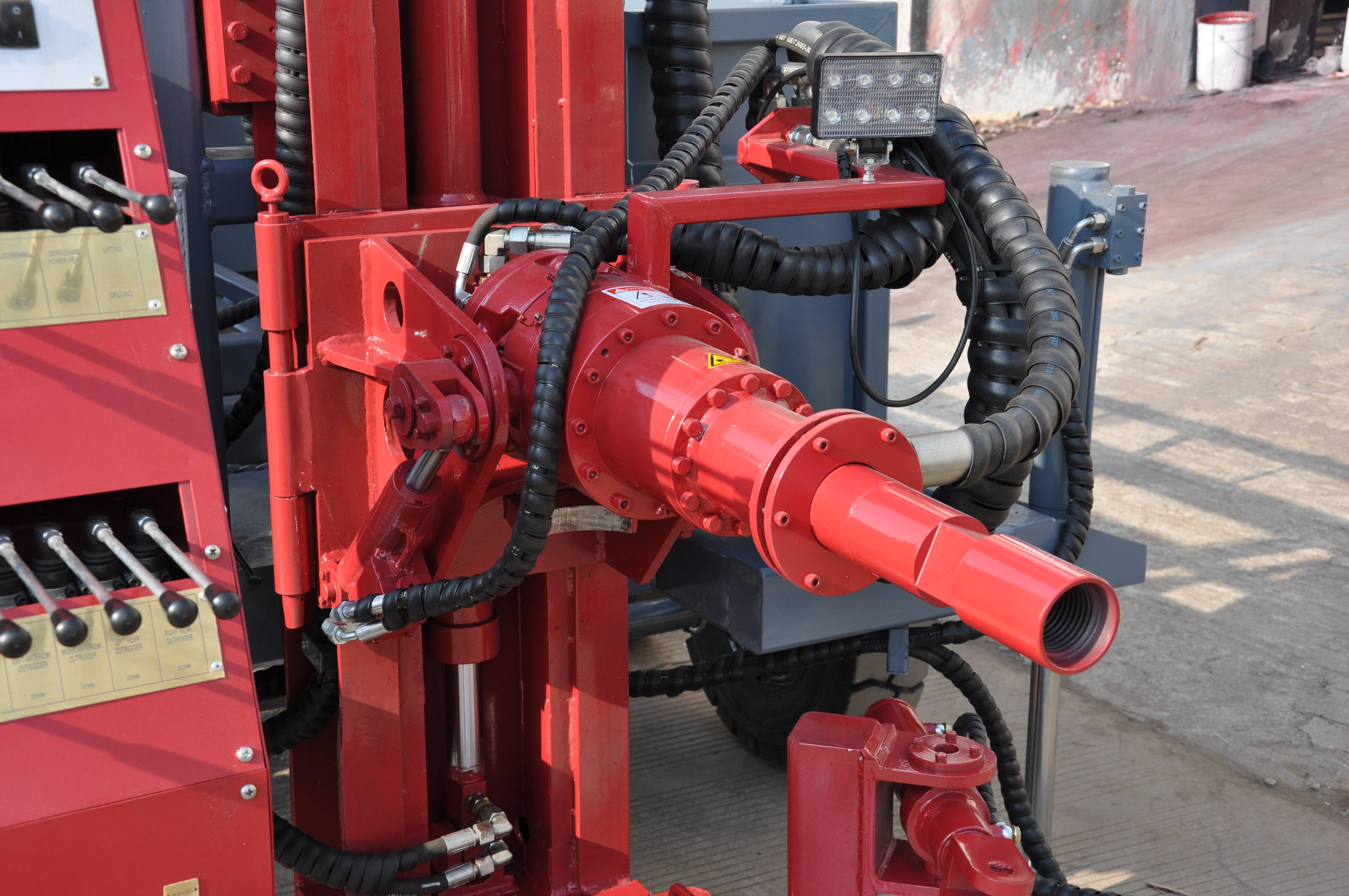

| Rotation | ||
| Rotation speed | 0~100 rpm | 3 500 Nm |
| Adjusting angle of mast | 0-90º | |

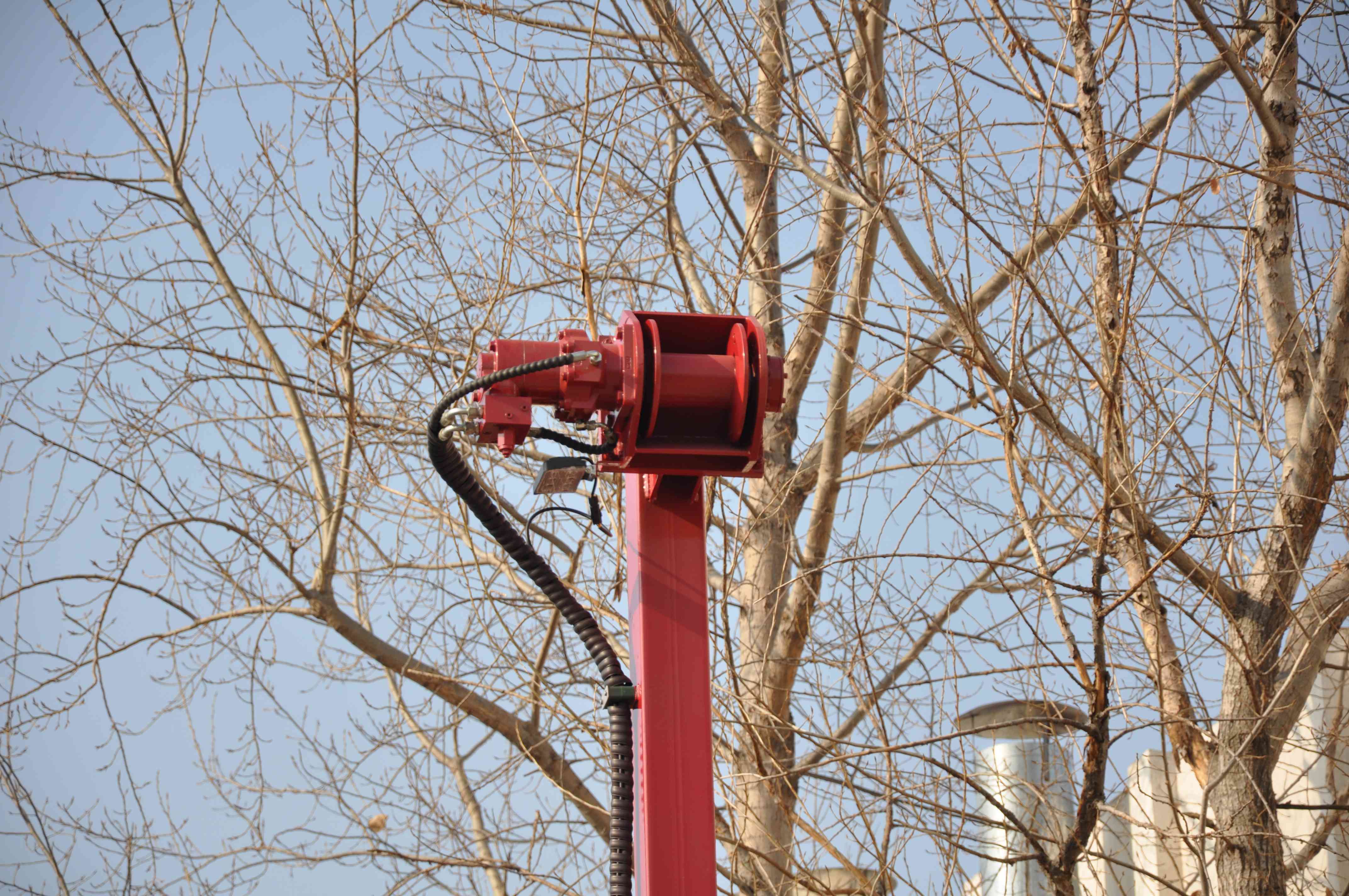

| Hoist crane at the top | ||
| Maximum hoist capacity | 23 kN | |
| Diameter of steel wire rope | 10 mm | |
| Length of steel wire rope | 22 m | |
| Untwisting system | ||
| Applicable drill rod | 50-102 mm | |
| Maximum torque | 16 000 Nm | |
| Dimensions and weight | ||
| Dimensions in operation | 5 104 x 2 200 x 6 677 mm | |
| Dimension in transportation | 5 104 x 2 200 x 2 446 mm | |
| Weight | 4 300 kg | |
